Style 5 - Round w/ Ext Threads

Round shafts with exterior threads are the ideal design for many conveyor applications. This shaft design is available in diameters of 1/2”, 1/4”, 3/8”, 5/16”, and 5/8”, along with several different thread sizes and materials.

Showing all 24 results

  • Product
  • Shaft Dia.
  • Shaft Material
  • Thread Size
  • Overall Length

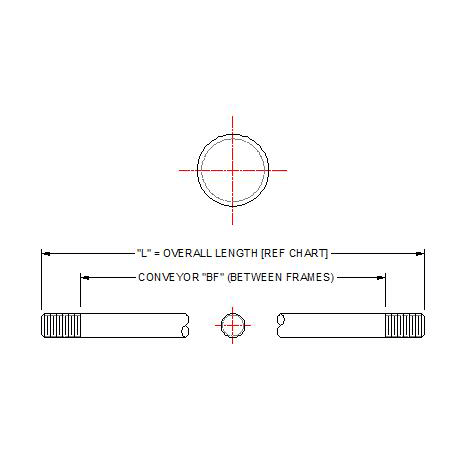

Diagram for roller shaft. FEI Conveyors.

SHA504M---

  • SHA504M---
  • Shaft Dia. 1/4"
  • Shaft Material C.R. Steel
  • Thread Size 1/4"-20
  • Overall Length BF + 7/8"
Diagram for roller shaft. FEI Conveyors.

SHA504P---

  • SHA504P---
  • Shaft Dia. 1/4"
  • Shaft Material Zinc Plated
  • Thread Size 1/4"-20
  • Overall Length BF + 7/8"
Diagram for roller shaft. FEI Conveyors.

SHA505M---

  • SHA505M---
  • Shaft Dia. 5/16"
  • Shaft Material C.R. Steel
  • Thread Size 5/16"-18
  • Overall Length BF + 1"
Diagram for roller shaft. FEI Conveyors.

SHA505P---

  • SHA505P---
  • Shaft Dia. 5/16"
  • Shaft Material Zinc Plated
  • Thread Size 5/16"-18
  • Overall Length BF + 1"
Diagram for roller shaft. FEI Conveyors.

SHA506F---

  • SHA506F---
  • Shaft Dia. 3/8"
  • Shaft Material 304 S.S.
  • Thread Size 3/8"-16
  • Overall Length BF + 1-1/8"
Diagram for roller shaft. FEI Conveyors.

SHA506M---

  • SHA506M---
  • Shaft Dia. 3/8"
  • Shaft Material C.R. Steel
  • Thread Size 3/8"-16
  • Overall Length BF + 1-1/8"
Diagram for roller shaft. FEI Conveyors.

SHA506P---

  • SHA506P---
  • Shaft Dia. 3/8"
  • Shaft Material Zinc Plated
  • Thread Size 3/8"-16
  • Overall Length BF + 1-1/8"
Diagram for roller shaft. FEI Conveyors.

SHA506S---

  • SHA506S---
  • Shaft Dia. 3/8"
  • Shaft Material 316 S.S.
  • Thread Size 3/8"-16
  • Overall Length BF + 1-1/8"
Diagram for roller shaft. FEI Conveyors.

SHA507F---

  • SHA507F---
  • Shaft Dia. 7/16"
  • Thread Size 7/16"-14
  • Shaft Material 304 S.S.
  • Overall Length BF + 1-1/4"
Diagram for roller shaft. FEI Conveyors.

SHA507M---

  • SHA507M---
  • Shaft Dia. 7/16"
  • Thread Size 7/16"-14
  • Shaft Material C.R. Steel
  • Overall Length BF + 1-1/4"
Diagram for roller shaft. FEI Conveyors.

SHA507P---

  • SHA507P---
  • Shaft Dia. 7/16"
  • Thread Size 7/16"-14
  • Shaft Material Zinc Plated
  • Overall Length BF + 1-1/4"
Diagram for roller shaft. FEI Conveyors.

SHA507S---

  • SHA507S---
  • Shaft Dia. 7/16"
  • Thread Size 7/16"-14
  • Shaft Material 316 S.S.
  • Overall Length BF + 1-1/4"
Diagram for roller shaft. FEI Conveyors.

SHA508F---

  • SHA508F---
  • Shaft Dia. 1/2"
  • Shaft Material 304 S.S.
  • Thread Size 1/2"-13
  • Overall Length BF + 1-5/8"
Diagram for roller shaft. FEI Conveyors.

SHA508M---

  • SHA508M---
  • Shaft Dia. 1/2"
  • Shaft Material C.R. Steel
  • Thread Size 1/2"-13
  • Overall Length BF + 1-5/8"
Diagram for roller shaft. FEI Conveyors.

SHA508P---

  • SHA508P---
  • Shaft Dia. 1/2"
  • Shaft Material Zinc Plated
  • Thread Size 1/2"-13
  • Overall Length BF + 1-5/8"
Diagram for roller shaft. FEI Conveyors.

SHA508S---

  • SHA508S---
  • Shaft Dia. 1/2"
  • Shaft Material 316 S.S.
  • Thread Size 1/2"-13
  • Overall Length BF + 1-5/8"
Diagram for roller shaft. FEI Conveyors.

SHA50AF---

  • SHA50AF---
  • Shaft Dia. 5/8"
  • Shaft Material 304 S.S.
  • Thread Size 5/8"-11
  • Overall Length BF + 1-3/4"
Diagram for roller shaft. FEI Conveyors.

SHA50AM---

  • SHA50AM---
  • Shaft Dia. 5/8"
  • Shaft Material C.R. Steel
  • Thread Size 5/8"-11
  • Overall Length BF + 1-3/4"
Diagram for roller shaft. FEI Conveyors.

SHA50AP---

  • SHA50AP---
  • Shaft Dia. 5/8"
  • Shaft Material Zinc Plated
  • Thread Size 5/8"-11
  • Overall Length BF + 1-3/4"
Diagram for roller shaft. FEI Conveyors.

SHA50AS---

  • SHA50AS---
  • Shaft Dia. 5/8"
  • Shaft Material 316 S.S.
  • Thread Size 5/8"-11
  • Overall Length BF + 1-3/4"
