2HF - Lubra Tuf Insert - Self Align

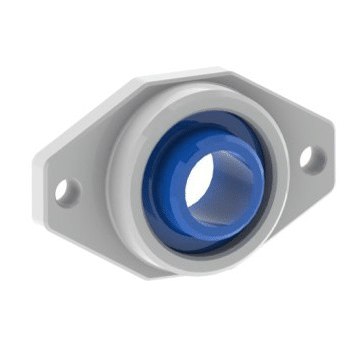

2 Hole Flange Mounted Bearing for Conveyor Systems – Self Aligning
FEI Conveyors manufactures self-aligning bearings in addition to our basic bearings. It is recommended to use a self-aligning bearing when the alignment of the shaft and housing is difficult, or when there is a risk the shaft may bend during repeated operation. Our self-aligning 2 hole flanges also come with the added benefit of a pre-installed Lubra Tuf insert, which eliminates the possibility of rust on the bearing. If you have any questions about self-aligning bearings vs. basic, please feel free to give us a call.
Filter Products
A
Axels Per Curve
Ball Bearing No.
B
Bearing Part No.
Bearing Type
B.F.
Body Diameter
C
D
Degree
E
Flange Diameter
Housing
I.D.
I.R.
Material
Max. Load
O.A.W.
O.D.
Overall Length
Pipe / Tube
Roller Centers
Schedule Gauge
Shaft Dia.
Shaft Material
Shaft Size
Tube Material
Wall
Wall Material
Wall Thickness
Weight (lbs.)
Weight (10')
Weight (5')
Wheels Per Ft.
Product
A
B
Bearing Part No.
C
D
E
F
Shaft Size
Actions
-

FBSL2-08
A4-13/32"B3-17/32"Bearing Part No.BI204L08C2-3/8"D1-1/4"E1/2"F13/32"Shaft Size1/2" -

FBSL2-10
A4-13/32"B3-17/32"Bearing Part No.BI204L10C2-3/8"D1-1/4"E1/2"F13/32"Shaft Size5/8" -

FBSL2-12
A4-13/32"B3-17/32"Bearing Part No.BI204L12C2-3/8"D1-1/4"E1/2"F13/32"Shaft Size3/4" -

FBSL2-14
A4-7/8"B3-7/8"Bearing Part No.BI205L14C2-3/4"D1-11/32"E1/2"F15/32"Shaft Size7/8" -

FBSL2-15
A4-7/8"B3-7/8"Bearing Part No.BI205L15C2-3/4"D1-11/32"E1/2"F15/32"Shaft Size15/16" -

FBSL2-16
A4-7/8"B3-7/8"Bearing Part No.BI205L16C2-3/4"D1-11/32"E1/2"F15/32"Shaft Size1 -

FBSL2-17
A5-9/16"B4-19/32"Bearing Part No.BI206L17C3-1/4"D1-15/32"E1/2"F15/32"Shaft Size1-1/16" -

FBSL2-18
A5-9/16"B4-19/32"Bearing Part No.BI206L18C3-1/4"D1-15/32"E1/2"F15/32"Shaft Size1-1/8" -

FBSL2-19
A5-9/16"B4-19/32"Bearing Part No.BI206L19C3-1/4"D1-15/32"E1/2"F15/32"Shaft Size1-3/16" -

FBSL2-20
A6-1/8"B5-1/8"Bearing Part No.BI207L20C3-3/4"D1-5/8"E9/16"F17/32"Shaft Size1-1/4" -

FBSL2-21
A6-1/8"B5-1/8"Bearing Part No.BI207L21C3-3/4"D1-5/8"E9/16"F17/32"Shaft Size1-5/16" -

FBSL2-22
A6-1/8"B5-1/8"Bearing Part No.BI207L22C3-3/4"D1-5/8"E9/16"F17/32"Shaft Size1-3/8" -

FBSL2-23
A6-1/8"B5-1/8"Bearing Part No.BI207L23C3-3/4"D1-5/8"E9/16"F17/32"Shaft Size1-7/16"
