2HF - Lubra Tuf Insert

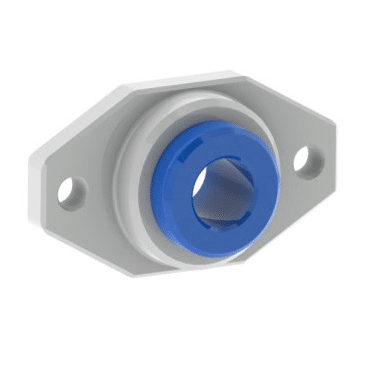

2 Hole Flange Mounted Bearing for Conveying Equipment – Lubra Tuf
The classic FEI Conveyors 2hole flange that you know and love, but with the addition of a Lubra-Tuf insert that virtually eliminates any possibility of rust in the bearing itself. These bolts have a diamond or winged-shape with 2 holes for mounting, and with the added rust protection, you will rest easy knowing the flanges are built to last. Our 2 hole flanges have bearings that can be easily moved and aligned to more efficiently accommodate long shafts.
Filter Products
A
Axels Per Curve
Ball Bearing No.
B
Bearing Part No.
Bearing Type
B.F.
Body Diameter
C
D
Degree
E
Flange Diameter
Housing
I.D.
I.R.
Material
Max. Load
O.A.W.
O.D.
Overall Length
Pipe / Tube
Roller Centers
Schedule Gauge
Shaft Dia.
Shaft Material
Shaft Size
Tube Material
Wall
Wall Material
Wall Thickness
Weight (lbs.)
Weight (10')
Weight (5')
Wheels Per Ft.
Product
A
B
Bearing Part No.
C
D
E
F
Shaft Size
Actions
-

FBL2-08
A4-13/32"B3-17/32"Bearing Part No.BCF08LIC2-3/8"D1-1/2"E1/2"F13/32"Shaft Size1/2" -

FBL2-10
A4-13/32"B3-17/32"Bearing Part No.BCF10LIC2-3/8"D1-1/2"E1/2"F13/32"Shaft Size5/8" -

FBL2-12
A4-13/32"B3-17/32"Bearing Part No.BCF12LIC2-3/8"D1-1/2"E1/2"F13/32"Shaft Size3/4" -

FBL2-14
A4-7/8"B3-7/8"Bearing Part No.BCF14LIC2-3/4"D1-1/2"E1/2"F15/32"Shaft Size7/8" -

FBL2-15
A4-7/8"B3-7/8"Bearing Part No.BCF15LIC2-3/4"D1-1/2"E1/2"F15/32"Shaft Size15/16" -

FBL2-16
A4-7/8"B3-7/8"Bearing Part No.BCF16LIC2-3/4"D1-1/2"E1/2"F15/32"Shaft Size1 -

FBL2-17
A5-9/16"B4-19/32"Bearing Part No.BCF17LIC3-1/4"D1-1/2"E1/2"F15/32"Shaft Size1-1/16" -

FBL2-18
A5-9/16"B4-19/32"Bearing Part No.BCF18LIC3-1/4"D1-1/2"E1/2"F15/32"Shaft Size1-1/8" -

FBL2-19
A5-9/16"B4-19/32"Bearing Part No.BCF19LIC3-1/4"D1-1/2"E1/2"F15/32"Shaft Size1-3/16" -

FBL2-20
A6-1/8"B5-1/8"Bearing Part No.BCF20LIC3-3/4"D2E9/16"F17/32"Shaft Size1-1/4" -

FBL2-21
A6-1/8"B5-1/8"Bearing Part No.BCF21LIC3-3/4"D2E9/16"F17/32"Shaft Size1-5/16" -

FBL2-22
A6-1/8"B5-1/8"Bearing Part No.BCF22LIC3-3/4"D2E9/16"F17/32"Shaft Size1-3/8" -

FBL2-23
A6-1/8"B5-1/8"Bearing Part No.BCF23LIC3-3/4"D2E9/16"F17/32"Shaft Size1-7/16" -

FBL2-24
A7B5-3/4"Bearing Part No.BCF24LIC4D2E5/8"F17/32"Shaft Size1-1/2" -

FBL2-26
A7B5-3/4"Bearing Part No.BCF26LIC4D2E5/8"F17/32"Shaft Size1-5/8" -

FBL2-27
A7B5-3/4"Bearing Part No.BCF27LIC4D2E5/8"F17/32"Shaft Size1-11/16"
