PB - Lubra Tuf Insert - Self Align

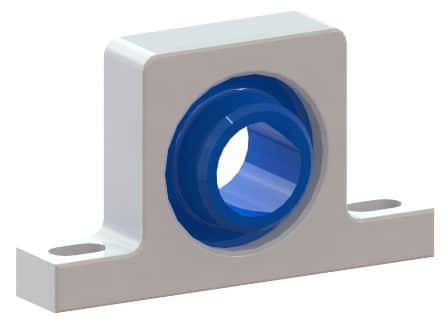

Pillow Block Flange Bearings for Roller Conveyors – Self Aligning
FEI Conveyors manufactures self-aligning pillow block bearings in addition to our basic bearings. It is recommended to use a self-aligning bearing when the alignment of the shaft and housing is difficult, or when there is a risk the shaft may bend during repeated operation. Our self-aligning pillow block flanges also come with the added benefit of a pre-installed Lubra Tuf insert, which eliminates the possibility of rust on the bearing. If you have any questions about self-aligning bearings vs. basic, please feel free to give us a call.
Filter Products
A
Axels Per Curve
Ball Bearing No.
B
Bearing Part No.
Bearing Type
B.F.
Body Diameter
C
D
Degree
E
Flange Diameter
Housing
I.D.
I.R.
Material
Max. Load
O.A.W.
O.D.
Overall Length
Pipe / Tube
Roller Centers
Schedule Gauge
Shaft Dia.
Shaft Material
Shaft Size
Tube Material
Wall
Wall Material
Wall Thickness
Weight (lbs.)
Weight (10')
Weight (5')
Wheels Per Ft.
Product
A
B
Bearing Part No.
C
D
E
F
Shaft Size
Actions
-

PBSL2-08
A5-1/4"B3-25/32"Bearing Part No.BI204L08C1-5/16"D1-1/4"E1/2"F1Shaft Size1/2" -

PBSL2-10
A5-1/4"B3-25/32"Bearing Part No.BI204L10C1-5/16"D1-1/4"E1/2"F1Shaft Size5/8" -

PBSL2-12
A5-1/4"B3-25/32"Bearing Part No.BI204L12C1-5/16"D1-1/4"E1/2"F1Shaft Size3/4" -

PBSL2-14
A5-1/2"B4-3/32"Bearing Part No.BI205L14C1-7/16"D1-11/32"E1/2"F1 -

PBSL2-15
A5-1/2"B4-3/32"Bearing Part No.BI205L15C1-7/16"D1-11/32"E1/2"F1Shaft Size15/16" -

PBSL2-16
A5-1/2"B4-3/32"Bearing Part No.BI205L16C1-7/16"D1-11/32"E1/2"F1Shaft Size1 -

PBSL2-17
A6-1/4"B4-5/8"Bearing Part No.BI206L17C1-5/8"D1-15/32"E1/2"F1Shaft Size1-1/16" -

PBSL2-18
A6-1/4"B4-5/8"Bearing Part No.BI206L18C1-5/8"D1-15/32"E1/2"F1Shaft Size1-1/8" -

PBSL2-19
A6-1/4"B4-5/8"Bearing Part No.BI206L19C1-5/8"D1-15/32"E1/2"F1Shaft Size1-3/16" -

PBSL2-20
A6-1/2"B5-1/16"Bearing Part No.BI207L20C1-7/8"D1-5/8"E5/8"F1-1/4"Shaft Size1-1/4" -

PBSL2-21
A6-1/2"B5-1/16"Bearing Part No.BI207L21C1-7/8"D1-5/8"E5/8"F1-1/4"Shaft Size1-5/16" -

PBSL2-22
A6-1/2"B5-1/16"Bearing Part No.BI207L22C1-7/8"D1-5/8"E5/8"F1-1/4"Shaft Size1-3/8" -

PBSL2-23
A6-1/2"B5-1/16"Bearing Part No.BI207L23C1-7/8"D1-5/8"E5/8"F1-1/4"Shaft Size1-7/16"
